BitPhyer Tools

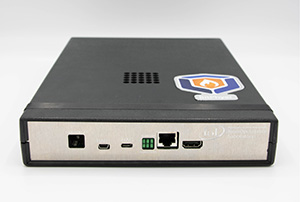

BitPhyer is a family of hardware platforms used to test the IEEE 802.3™ MAC, Flow Control, PCS and RS layers for Ethernet devices. This platform is based on Xilinx FPGAs and custom built hardware which are used to create a flexible bit-level based test system. BitPhyer can be used to generate arbitrary bit patterns and frames and enables users to define their own test scripts in addition to the UNH-IOL generated test plans included with the system. The BitPhyer family of hardware platforms supports various speeds and duplexes over several port types from 10Mb/s to 10Gb/s.

Benefits

  • Decrease costs and testing time by implementing a common set of test cases for easy compliance comparison
  • Create automation of UNH-IOL Test Plans
  • Access to industry recognized test practices
  • Ability to add customizable test cases
  • Increase consistency of testing between development teams using the same platform
  • Faster root cause analysis of conformance issues
BitPhyer Options
BitPhyer ST BitPhyer STA BitPhyer S4TA
Supported Speeds 1x10/100/1000BASE-T
1xSFP (1G only)		 1x10/100/1000BASE-T
1xSFP (1G only)
1x100BASE-T1(BroadR-Reach)		 4x10/100/1000/2.5G/5G/
10GBASE-T
1x100BASE-T1 (BroadR-Reach)
1xSFP (1G&10G)
One-Time Hardware Fee $2,500 USD $3,000 USD $4,000 USD
Supported Test Plans
BitPhyer ST BitPhyer STA BitPhyer S4TA Annual License Fee
Clause 4 MAC ✔ ✔ ✔ $6,000 USD
Clause 24 PCS ✔ ✔ ✔ TBD
Clause 28 State Machine ✔ TBD
Clause 28 Next Page ✔ TBD
Clause 28 Management Register ✔ TBD
Clause 28 Management System ✔ TBD
Clause 31 Flow Control ✔ ✔ ✔ $4,000 USD
Clause 36 PCS ✔ ✔ ✔ TBD
Clause 37 Auto-Negotiation ✔ ✔ ✔ TBD
Clause 40 Auto-Crossover ✔ TBD
Clause 45 MDIO for Auto-Negotiation ✔ TBD
Clause 46 RS ✔ TBD
Clause 49 PCS ✔ TBD
Automotive Clause 96 PCS ✔ ✔ $5,000 USD
Automotive Clause 96 PHY Control ✔ ✔ $5,000 USD
Clause 99 Preemption ✔ ✔ ✔ TBD

Support and Maintenance
Details
 Annual Fee
  • Training and debugging sessions (On-site is available for an additional cost)
  • Learn about the latest release features
  • Installation and set-up guidance
  • Assistance with device automation
  • Detailed result analysis and IEEE Standards review
  • Support is recommended with purchase of license(s). Multiple test packages and licenses are covered. Support is included in testing service memberships, please inquire for more details.
 $10,000 USD
