OCP NIC 3.0 / PCIe Test Fixtures

These test fixtures are necessary for testing PCIe devices which use the OCP NIC 3.0 form factor. These fixtures will arrive meeting the OCP NIC 3.0 Specification with a characterization of the boards. These fixtures mate with the OCP form factor connector, and will allow an electrical break out of each signaling lane.

Additionally these fixtures can be used for validating PCIe SSDs using the EDSFF form factors such as E1.L, E1.S, and E3.

To purchase one or more of these test fixtures, please fill out the order form.

OCP NIC 3.0 / PCIe Test Fixtures

Board Name Details Image

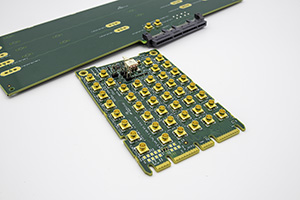

OCP NIC 3.0 SI Gen 3 CLB Test Board

OCP NIC 3.0 SI Gen 3 (8 GT/s) CLB Test Board used for testing of System Board DUTs and performing Receiver Test Setup Calibration (when paired with the CBB).

Three options are available:

  1. One (1) CLB for lanes 0-7, one (1) CLB for lanes 8-15, and one (1) calibration board for 1x thru
  2. One (1) CLB for lanes 0-7 and one (1) calibration board for 1x thru
  3. One (1) CLB for lanes 8-15
OCP 3.0 SI Gen 3 CLB Test Board

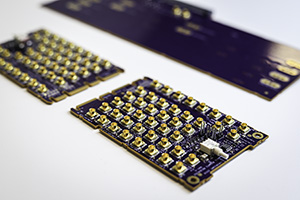

OCP NIC 3.0 SI Gen 4 CLB Test Board

OCP NIC 3.0 SI Gen 4 (16 GT/s) CLB Test Board used for testing of System Board DUTs and performing Receiver Test Setup Calibration (when paired with the CBB).

Three options are available:

  1. One (1) CLB for lanes 0-7, one (1) CLB for lanes 8-15, and one (1) calibration board for 1x thru
  2. One (1) CLB for lanes 0-7 and one (1) calibration board for 1x thru
  3. One (1) CLB for lanes 8-15
OCP 3.0 SI Gen 4 CLB Test Board

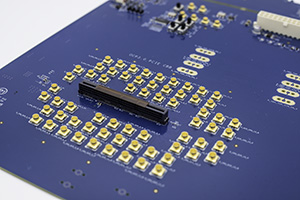

OCP NIC 3.0 SI Gen 3 CBB Test Board OCP NIC 3.0 SI Gen 3 (8 GT/s) CBB Test Board used for testing of AIC DUTs and performing Receiver Test Setup Calibration (when paired with the CLB). Also comes with a calibration board for 1x thru. This fixture can also be used for testing PCIe SSDs using EDSFF form factors such as E1.L, E1.S, and E3. OCP 3.0 SI Gen 3 Rx CBB Test Board

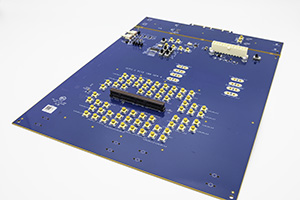

OCP NIC 3.0 SI Gen 4 CBB Test Board OCP NIC 3.0 SI Gen 4 (16 GT/s) CBB Test Board used for testing of AIC DUTs and performing Receiver Test Setup Calibration (when paired with the CLB). Also comes with a calibration board for 1x thru. This fixture can also be used for testing PCIe SSDs using EDSFF form factors such as E1.L, E1.S, and E3. OCP 3.0 SI Gen 4 Rx CBB Test Board

Order OCP NIC 3.0 Test Fixtures
