The UNH-IOL has been a contributing member of the MIPI Alliance since 2007 and tests all mobile devices looking for MIPI conformance and physical layer testing including C-PHY, D-PHY, DSI, and CSI-2. All UNH-IOL MIPI Test Fixtures and Tools are available to member and non-member companies. Below are just some of the MIPI Solutions we offer. For a full list please visit our MIPI Test Fixtures page.

Software Tools

QualiPhyer C-PHY GUI Software:
QualiPhyer C-PHY GUI is a software tool which works in conjunction with common high speed digital storage oscilloscopes for performing C-PHY protocol analysis and physical layer testing, ensuring that a C-PHY transmitter device adheres to the requirements of the C-PHY specification. More Information »

Request a Quote

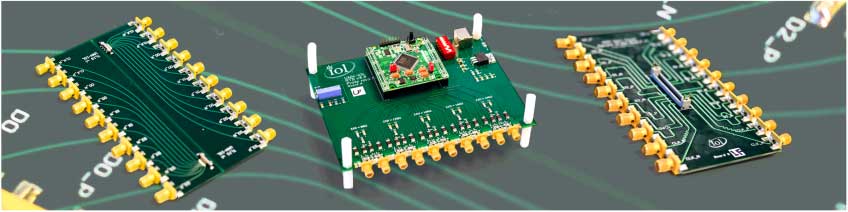

Hardware Test Fixtures

MIPI C-PHY Reference Termination Board (RTB):
The MIPI C-PHY RTB is a reference termination test fixture used for performing MIPI C-PHY transmitter physical layer signaling measurements.

MIPI D-PHY Reference Termination Board (RTB):
The MIPI D-PHY RTB is a reference termination test fixture used for performing MIPI D-PHY transmitter physical layer signaling measurements.

Soft-Touch Board:
The Soft-Touch board is designed to be used with the Agilent U4421A Protocol Analyzer for MIPI D-PHY Interfaces.

More information about our MIPI Test Fixtures »

Order Test Fixtures
