Q-SYS Network Switch Qualified Switch List

The UNH-IOL has partnered with QSC to offer independent network switch qualification services. The devices listed below indicate that they have passed the requirements and meet the performance needs of Q-SYS.

Please contact us with any questions regarding configuration details and examples of any of the switches listed below.

Manufacturer Product Name Product Firmware Q-SYS Software Version Test Plan Version Performance Chart Listed Date
Luminex Network Intelligence
  • GigaCore 10
  • GigaCore 10 with PoE
v2.8.4 8.1.1 1.0 12/22/20
Luminex Network Intelligence
  • GigaCore 12
  • GigaCore 12 with PoE
  • GigaCore 14R
  • GigaCore 14R with PoE
  • GigaCore 16Xt
  • GigaCore 16Xt with PoE
  • GigaCore 16RFO
  • GigaCore 16RFO with PoE
v2.8.4

8.1.1

1.0

11/17/20
Luminex Network Intelligence
  • GigaCore 26i
  • GigaCore 26i with PoE
v2.8.4 8.1.1 1.0 10/29/20
Alcatel-Lucent Enterprise

OS6860E-P24

8.6.R01 8.1.1 1.0 5/21/20
Alcatel-Lucent Enterprise OS6860E-P48 8.6.R01 8.1.1 1.0 5/21/20
Alcatel-Lucent Enterprise OS6900-X72 8.6.R01 8.1.1 1.0




5/21/20
NETGEAR M4300-52G PoE+ 12.0.9.3 8.1.1 1.0 2/12/20
NETGEAR M4300-24XF 12.0.9.3 8.1.1 1.0

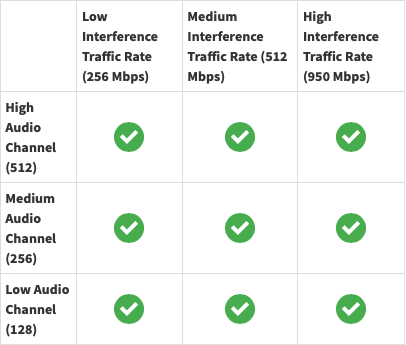

Low Interference Traffic Rate (256 Mbps) Medium Interference Traffic Rate (512 Mbps) High Interference Traffic Rate (950 Mbps)
High Audio Channel (512) Yes Yes Yes
Medium Audio Channel (256) Yes Yes Yes
Low Audio Channel (128) Yes Yes Yes
2/12/20
Extreme 450X-G2 30.1.1.4 7.1.2 1.0
Low Interference Traffic Rate (256 Mbps) Medium Interference Traffic Rate (512 Mbps) High Interference Traffic Rate (950 Mbps)
High Audio Channel (512) Yes Yes Yes
Medium Audio Channel (256) Yes Yes Yes
Low Audio Channel (128) Yes Yes Yes
10/17/19
Cisco Catalyst 9300 16.9.1 7.1.2 1.0
Low Interference Traffic Rate (256 Mbps) Medium Interference Traffic Rate (512 Mbps) High Interference Traffic Rate (950 Mbps)
High Audio Channel (512) Yes Yes Yes
Medium Audio Channel (256) Yes Yes Yes
Low Audio Channel (128) Yes Yes Yes
6/20/19
HPE Aruba 3810M KB.16.04.008 7.1.2 1.0
Low Interference Traffic Rate (256 Mbps) Medium Interference Traffic Rate (512 Mbps) High Interference Traffic Rate (950 Mbps)
High Audio Channel (512) Yes Yes Yes
Medium Audio Channel (256) Yes Yes Yes
Low Audio Channel (128) Yes Yes Yes
6/20/19
Juniper EX4300 17.3R3.10 7.1.2 1.0
Low Interference Traffic Rate (256 Mbps) Medium Interference Traffic Rate (512 Mbps) High Interference Traffic Rate (950 Mbps)
High Audio Channel (512) Yes Yes Yes
Medium Audio Channel (256) Yes Yes Yes
Low Audio Channel (128) Yes Yes Yes
6/20/19
