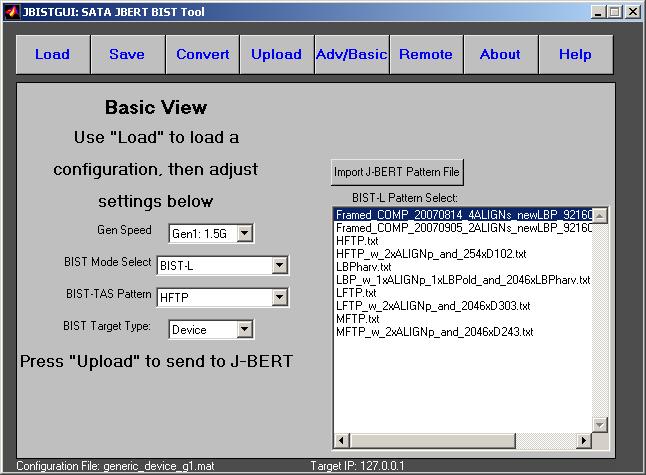

JBISTGUI is a standalone application developed through a collaborative effort between UNH-IOL and Keysight Technologies. The software configures the Keysight N4903B J-BERT to transmit the necessary sequences that can enable the BIST-L and BIST-TAS test modes for SATA Host and Device Products.

The software is available for free download, but we require that you register and complete a license agreement. After registering you may download the zip archive that contains the compiled JBISTGUI executable, as well as full documentation.

License and download JBISTGUI (the download link is on the confirmation page after filling out the registration form)

Visit Keysight Technologies for more information about the Keysight N4903B J-BERT product.

Protocol Conformance Test Tools

Sierra M6-4 SAS/SATA Protocol Analyzer

Sierra M6-4 SAS/SATA Protocol Analyzer

Through a collaborative agreement with the Teledyne-LeCroy Corporation, the UNH-IOL offers access to the Sierra M6-4 tool for SAS/SATA protocol analysis with speeds up to 6G. This platform provides analysis and diagnostic capabilities for SAS/SATA devices Generator capabilities.

For more information on the LeCroy Sierra M6-2 please visit http://www.teledynelecroy.com

Physical Layer Electrical Test Tools

Keysight DCA-J 86100C with 5474A Modules

Keysight DCA-J 86100C with 5474A Modules

Through a collaborative agreement with Keysight Technologies, the UNH-IOL offers access to the DCA-J 86100C with the 5474A TDR Modules. This platform provides the ability to test Return Loss for physical layer electrical SATA conformance and Imedance Profiling.

For more information on the Keysight TDR please visit http://www.keysight.com

Keysight 81204A

Keysight 81204A

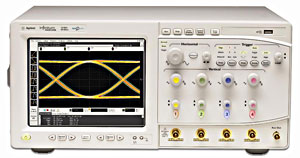

Through a collaborative agreement with Keysight Technologies, the UNH-IOL offers access to the 81204A 12 Ghz Realtime DSO. This platform provides the ability to capture real-time SATA traffic for physical layer electrical SATA conformance as well as protocol analysis.

For more information on the Keysight Oscilloscope please visit http://www.keysight.com

Keysight 81134A

Keysight 81134A

Through a collaborative agreement with Keysight Technologies, the UNH-IOL offers access to the 81134A Pattern Generator capable of producing a repeating pattern at speeds up to 3.35 Ghz.

For more information on the Keysight Pattern Generator please visit http://www.keysight.com

Keysight J-BERT

Keysight J-BERT

Through a collaborative agreement with Keysight Technologies, the UNH-IOL offers access to the J-BERT. This platform provides the complete jitter tolerance test solution for characterization of serial gigabit devices.

For more information on the Keysight J-BERT please visit http://www.keysight.com

Tektronix DSA8200

Tektronix DSA8200

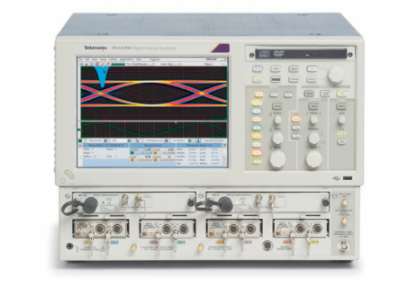

Through a collaborative agreement with Tektronix, the UNH-IOL offers access to the Tektronix DSA8200. This platform provides the a complete network and link layer analysis.

For more information on the Tektronix DSA8200 please visit http://www.tek.com/

Tektronix CSA8000B

Tektronix CSA8000B

Through a collaborative agreement with Tektronix, the UNH-IOL offers access to the Tektronix CSA8000B. This platform provides evaluation of datacom and telecom components, transceiver subassemblies and transmission systems.

For more information on the Tektronix CSA8000B please visit http://www.tek.com/

Tektronix AWG7122C

Tektronix AWG7122C

Through a collaborative agreement with Tektronix, the UNH-IOL offers access to the Tektronix AWG7122C. This platform provides evaluation of Serial ATA components for receiver compliance testing.
